POLARIS RANGER
Polaris RANGER® 1000 EPS
THE NEXT GENERATION OF WORLD’S BEST-SELLING UTV
We took the best-selling RANGER of all time, the RANGER XP 900, and gave it the capability to haul more, tow more and last longer while delivering more comfort, more convenience and more value for your hard-earned dollar.
Electronic Power Steering
Lock & Ride Cargo System
1,500 lb Payload Capacity
Stamped Steel Wheels
Base Steel Bumper with Plow and Winch Integration
SPECIFICATIONS
ENGINE & DRIVETRAIN
| Engine Type | 4-Stroke SOHC Twin Cylinder | 4-Stroke SOHC Twin Cylinder |
| Cylinders-Displacement (cc) | 999cc | 999cc |
| Fuel System/Battery | Electronic Fuel Injection | Electronic Fuel Injection |
| Cooling | Liquid | Liquid |
| Transmission/Final Drive | Automatic PVT H/L/N/R/P; Shaft | Automatic PVT H/L/N/R/P; Shaft |
| Drive System Type | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode | High Performance On-Demand True AWD/2WD/VersaTrac Turf Mode |
| Engine Braking System/Active Descent Control | Not Equipped / Not Equipped | Not Equipped / Not Equipped |
SUSPENSION
| Front Suspension | Dual A-Arm 25.4 cm Travel | Dual A-Arm 25.4 cm Travel |
| Rear Suspension | Dual A-Arm, IRS 25.4 cm Travel | Dual A-Arm, IRS 25.4 cm Travel |
BRAKES
| Front/Rear Brakes | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers | 4-Wheel Hydraulic Disc with Dual-Bore Front and Rear Calipers |
| Parking Brake | Park in Transmission | Park in Transmission |
TYRES / WHEELS
| Front Tyres | 25 x 10 -12; 489 | 26 x 9-12; PXT 2.0 |
| Rear Tyres | 25 x 11-12; 489 | 26 x 11-12; PXT 2.0 |
| Wheels | Stamped Steel | Aluminum Black Xcelerator 2.0 |
DIMENSIONS
| Wheelbase | 206 cm | 206 cm |
| Estimated Dry Weight | 693 kg | 697 kg |
| Overall Vehicle Size (L x W x H) | 305 cm x 158 cm x 193 cm | 305 cm x 158 cm x 193 cm |
| Ground Clearance | 30.5 cm | 30.5 cm |
| Seating Capacity | 3 | 3 |
| Fuel Capacity | 43 L | 43 L |
| Bed Box Dimensions (L x W x H) | 93.3 cm x 137.8 cm x 31.75 cm | 93.3 cm x 137.8 cm x 31.75 cm |
| Front/Rear Rack or Box Capacity | N/A / 453.6 kg | N.A / 453.6 kg |
| Payload Capacity | 680.4 kg | 680.4 kg |
| Hitch Towing Rating | 1,133.9 kg | 1,133.9 kg |
| Hitch/Type | Standard 5 cm Receiver | Standard 5 cm Receiver |
FEATURES
| Cargo System | Lock & Ride® | Lock & Ride® |
| Lighting | 55W low/ 60W high, LED Tail | 55W low/ 60W high, LED Tail |
| Electronic Power Steering | Standard | Standard |
| Adjustable Driver’s Seat | Not Eqipped | Standard |
| Tilt Steering | Standard | Standard |
| Instrumentation | 4″ LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet | 4″ LCD Rider Information Center: User Selectable Blue/Red Backlighting & Brightness, Programmable Service Intervals, Speedometer, Tachometer, Odometer, Tripmeter, Clock, Hour Meter, Gear Indicator, Fuel Gauge, Coolant Temperature, Voltmeter, Service Indicator and Codes, Seat Belt Reminder, DC Outlet |
| Other Standard Features | Polaris Pulse Electrical System (3 position) | Polaris Pulse Electrical System (3 position) |
| Colours | Solar Red | Matter Titanium |
RANGER® 1000 EPS
Polaris RANGER® 1000 EPS THE NEXT GENERATION OF WORLD’S BEST-SELLING UTV We took the best-selling RANGER of all time, the RANGER XP 900, and gave it […]

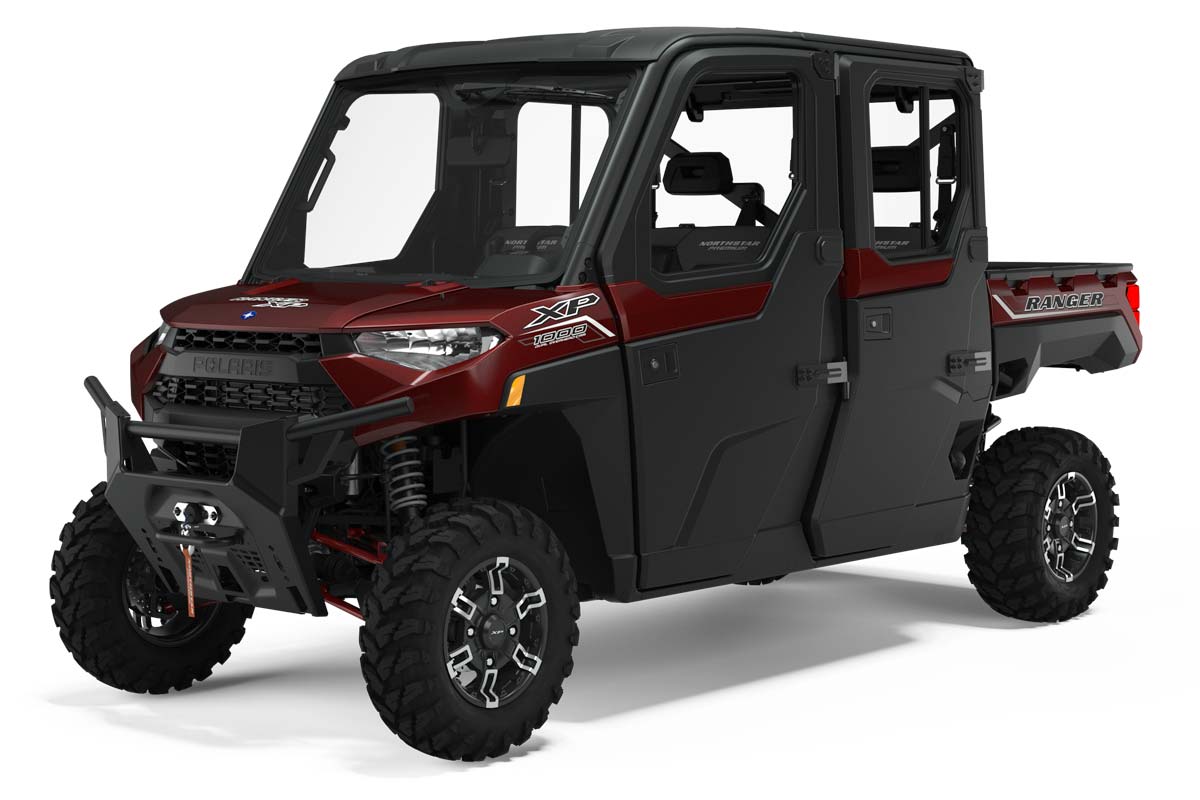

RANGER CREW® XP 1000 EPS NORTHSTAR EDITION
